Infinity Checkout Android Native SDK Integration

The Android Native SDK integration involves the following steps below:

📘
Note:

Ensure you store your Client ID and Secret in your Backend securely.

Integrate our APIs on your backend system.

We strictly recommend not to call our APIs from the frontend.

Failure to adhere to the above guidelines may result in legal implications. In such cases, you will be held responsible for any damage or loss arising from non-compliance.

1. [Prerequisite] Integrate APIs in Your Backend

Start a payment by triggering the payment flow. To start a payment, follow the below steps:

1.1. Generate Auth Token

Integrate our Generate Token API in your backend servers to generate the auth token. Use the token generated to authenticate Pine Labs Online APIs.

Below are the sample requests and response for the Generate Token API.

curl --location 'https://pluraluat.v2.pinepg.in/api/auth/v1/token' \
--header 'accept: application/json' \
--header 'content-type: application/json' \
--header 'Request-Timestamp: 2024-07-09T07:57:08.022Z' \
--header 'Request-ID: c17ce30f-f88e-4f81-ada1-c3b4909ed235' \
--data '
{
  "client_id": "a17ce30e-f88e-4f81-ada1-c3b4909ed232",
  "client_secret": "fgwei7egyhuggwp39w8rh",
  "grant_type": "client_credentials"
}
'

curl --location 'https://api.pluralpay.in/api/auth/v1/token' \
--header 'accept: application/json' \
--header 'content-type: application/json' \
--header 'Request-Timestamp: 2024-07-09T07:57:08.022Z' \
--header 'Request-ID: c17ce30f-f88e-4f81-ada1-c3b4909ed235' \
--data '
{
  "client_id": "a17ce30e-f88e-4f81-ada1-c3b4909ed232",
  "client_secret": "fgwei7egyhuggwp39w8rh",
  "grant_type": "client_credentials"
}
'

{
  "access_token": "eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJzdWIiOiIxMjM0NTY3ODkwIiwibmFtZSI6IkpvaG4gRG9lIiwiaWF0IjoxNTE2MjM5MDIyfQ.SflKxwRJSMeKKF2QT4fwpMeJf36POk6yJV_adQssw5c",
  "expires_in": 3600
}

Click here for request and response parameter information.

Request Parameters

Response Parameters

The table below lists the request parameters of our Generate Token API.

Parameter	Type	Description
client_id required	`string`	Unique client identifier in the Pine Labs Online database. Example: `a17ce30e-f88e-4f81-ada1-c3b4909ed232` Note: The Onboarding team has provided you with this information as part of the onboarding process.
client_secret required	`string`	Unique client secret key provided while onboarding. Example: `fgwei7egyhuggwp39w8rh` Note: The Onboarding team has provided you with this information as part of the onboarding process.
grant_type required	`string`	The grant type to generate an access token. Accepted value: `client_credentials`

The table below lists the response parameters of our Generate Token API.

Parameter	Type	Description
access_token	`string`	The access token generated by the system. • Minimum length: 1 character. • Maximum length: 8192 characters. Example: `eyJhbGciOiJIUzI1NiIsIn` Note: Use this token in the authorization headers to authenticate Pine Labs Online APIs.
expires_at	`string`	Access duration timestamp. Example: `2024-06-28T13:26:06.909140Z`

Refer to our Generate Token API documentation to learn more.

1.2. Generate Checkout Link

Use this API to create a infinity checkout link, for authentication use the generated access token in the headers of the API request.

Below are the sample requests and response for a Generate Checkout Link API.

curl --location 'https://pluraluat.v2.pinepg.in/api/checkout/v1/orders' \
--header 'Authorization: Bearer eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJzdWIiOiIxMjM0NTY3ODkwIiwibmFtZSI6IkpvaG4gRG9lIiwiaWF0IjoxNTE2MjM5MDIyfQ.SflKxwRJSMeKKF2QT4fwpMeJf36POk6yJV_adQssw5c' \
--header 'Content-Type: application/json' \
--header 'Request-ID: c17ce30f-f88e-4f81-ada1-c3b4909ed235' \
--header 'Request-Timestamp: 2024-07-09T07:57:08.022Z' \
--header 'accept: application/json' \
--data '
{
  "merchant_order_reference": "112345",
  "order_amount": {
    "value": 1100,
    "currency": "INR"
  },
  "integration_mode": "REDIRECT",
  "pre_auth": false,
  "allowed_payment_methods": [
    "CARD",
    "UPI",
    "NETBANKING",
    "POINTS",
    "WALLET"
  ],
  "notes": "order1",
  "callback_url": "https://sample-callback-url",
  "failure_callback_url": "https://sample-failure-callback-url",
  "purchase_details": {
    "customer": {
      "email_id": "[email protected]",
      "first_name": "Kevin",
      "last_name": "Bob",
      "customer_id": "123456",
      "mobile_number": "9876543210",
      "country_code": "91",
      "billing_address": {
        "address1": "10 Downing Street Westminster London",
        "address2": "Oxford Street Westminster London",
        "address3": "Baker Street Westminster London",
        "pincode": "51524036",
        "city": "Westminster",
        "state": "Westminster",
        "country": "London",
        "full_name": "harsh kumar",
        "address_type": "HOME/WORK/OTHER",
        "address_category": "BILLING"
      },
      "shipping_address": {
        "address1": "10 Downing Street Westminster London",
        "address2": "Oxford Street Westminster London",
        "address3": "Baker Street Westminster London",
        "pincode": "51524036",
        "city": "Westminster",
        "state": "Westminster",
        "country": "London",
        "full_name": "harsh kumar",
        "address_type": "HOME/WORK/OTHER",
        "address_category": "BILLING"
      }
    },
    "merchant_metadata": {
      "express_checkout_enabled": "TRUE",
      "express_checkout_allowed_action": "checkoutCollectAddress",
      "key1": "DD",
      "key2": "XOF"
    }
  },
  "cart_details": {
    "cart_items": [
      {
        "item_id": "cart_id_1",
        "item_name": "T Shirt",
        "item_description": "Test Description",
        "item_details_url": "https://chriscross.in/cdn/shop/files/95_800x.jpg",
        "item_image_url": "https://chriscross.in/cdn/shop/files/95_800x.jpg",
        "item_original_unit_price": 1,
        "item_discounted_unit_price": 1,
        "item_quantity": 1,
        "item_currency": "INR"
      }
    ]
  }
}
'

curl --location 'https://api.pluralpay.in/api/checkout/v1/orders' \
--header 'Authorization: Bearer eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJzdWIiOiIxMjM0NTY3ODkwIiwibmFtZSI6IkpvaG4gRG9lIiwiaWF0IjoxNTE2MjM5MDIyfQ.SflKxwRJSMeKKF2QT4fwpMeJf36POk6yJV_adQssw5c' \
--header 'Content-Type: application/json' \
--header 'Request-ID: c17ce30f-f88e-4f81-ada1-c3b4909ed235' \
--header 'Request-Timestamp: 2024-07-09T07:57:08.022Z' \
--header 'accept: application/json' \
--data '
{
  "merchant_order_reference": "112345",
  "order_amount": {
    "value": 1100,
    "currency": "INR"
  },
  "integration_mode": "REDIRECT",
  "pre_auth": false,
  "allowed_payment_methods": [
    "CARD",
    "UPI",
    "NETBANKING",
    "POINTS",
    "WALLET"
  ],
  "notes": "order1",
  "callback_url": "https://sample-callback-url",
  "failure_callback_url": "https://sample-failure-callback-url",
  "purchase_details": {
    "customer": {
      "email_id": "[email protected]",
      "first_name": "Kevin",
      "last_name": "Bob",
      "customer_id": "123456",
      "mobile_number": "9876543210",
      "country_code": "91",
      "billing_address": {
        "address1": "10 Downing Street Westminster London",
        "address2": "Oxford Street Westminster London",
        "address3": "Baker Street Westminster London",
        "pincode": "51524036",
        "city": "Westminster",
        "state": "Westminster",
        "country": "London",
        "full_name": "harsh kumar",
        "address_type": "HOME/WORK/OTHER",
        "address_category": "BILLING"
      },
      "shipping_address": {
        "address1": "10 Downing Street Westminster London",
        "address2": "Oxford Street Westminster London",
        "address3": "Baker Street Westminster London",
        "pincode": "51524036",
        "city": "Westminster",
        "state": "Westminster",
        "country": "London",
        "full_name": "harsh kumar",
        "address_type": "HOME/WORK/OTHER",
        "address_category": "BILLING"
      }
    },
    "merchant_metadata": {
      "express_checkout_enabled": "TRUE",
      "express_checkout_allowed_action": "checkoutCollectAddress",
      "key1": "DD",
      "key2": "XOF"
    }
  },
  "cart_details": {
    "cart_items": [
      {
        "item_id": "cart_id_1",
        "item_name": "T Shirt",
        "item_description": "Test Description",
        "item_details_url": "https://chriscross.in/cdn/shop/files/95_800x.jpg",
        "item_image_url": "https://chriscross.in/cdn/shop/files/95_800x.jpg",
        "item_original_unit_price": 1,
        "item_discounted_unit_price": 1,
        "item_quantity": 1,
        "item_currency": "INR"
      }
    ]
  }
}
'

{
  "token": "REDIRECT TOKEN",
  "order_id": "ORDER ID",
  "redirect_url": "https://api.pluralonline.com/api/v3/checkout-bff/redirect/checkout?token=REDIRECT TOKEN",
  "response_code": 200,
  "response_message": "Order Creation Successful."
}

Click here for request and response parameter information.

Request Parameters

Response Parameters

The table below lists the request parameters of our Create Checkout Link API.

Parameter	Type	Description
merchant_order_reference required	`string`	Enter a unique identifier for the order request. Minimum: 1 character. Maximum: 50 characters. Example: `1234567890` Supported characters: `A-Z` `a-z` `0-9` `-` `_`
order_amount required	`object`	An object that contains the transaction amount details. Learn more about the `order_amount` child object.
pre_auth	`boolean`	The pre-authorization type. Possible values: `false` (default): When pre-authorization is not required. `true`: When pre-authorization is needed.
allowed_payment_methods	`array of strings`	The type of payment methods you want to offer customers. Accepted values: `CARD` `UPI` `POINTS` `NETBANKING` `WALLET` `CREDIT_EMI` `DEBIT_EMI` Example: CARD Note: Ensure it is configured for you.
notes	`string`	Note to show against an order. Example: `Order1`
callback_url	`string`	Use this URL to redirect your customers to specific success or failure pages based on the order or product details. Example: `https://sample-callback-url`
failure_callback_url	`string`	Use this URL to redirect your customers to specific failure pages based on the order or product details. Example: `https://sample-failure-callback-url`
purchase_details	`object`	An object that contains purchase details. Learn more about the `purchase_details` child object.
cart_details	`object`	An object that contains cart details. Learn more about the `cart_details` child object.

Order Amount [Child Object]

The table below lists the various parameters in the order_amount child object. This object is part of the Create Checkout Link request object.

Parameter	Type	Description
value required	`integer`	Transaction amount in Paisa. Minimum value: `100` (₹1). Maximum value: `100000000` (₹10 lakh). Example: `1000`
currency required	`string`	Type of currency. Example: `INR`

Purchase Details [Child Object]

The table below lists the various parameters in the purchase_details child object. This object is part of the Create Checkout Link request object.

Parameter	Type	Description
customer	`object`	An object that contains the customer details. Learn more about the `customer` child object.
merchant_metadata	`object`	An object of key-value pair that can be used to store additional information. Learn more about the `merchant_metadata` child object.

Customer [Child Object]

The table below lists the various parameters in the customer child object. This is part of the purchase_details object.

Parameter	Type	Description
email_id	`string`	Customer's email address. Minimum length: `1` character. Maximum length: `50` characters. Example: `[email protected]`
first_name	`string`	Customer's first name. Minimum length: `1` character. Maximum length: `50` characters. Example: `Kevin`
last_name	`string`	Customer's last name. Minimum length: `1` character. Maximum length: `50` characters. Example: `Bob`
customer_id	`string`	Unique identifier of the customer in the Pine Labs Online database. Minimum length: `1` character. Maximum length: `19` characters. Example: `123456`
mobile_number	`string`	Customer's mobile number. Minimum length: `9` characters. Maximum length: `20` characters. Example: `9876543210`
country_code	`string`	Country code of the registered mobile number. Maximum length: `5` characters. Example: `91` Note: If the country code is not provided, it defaults to `91`.
billing_address	`object`	An object that contains the details of the billing address. Learn more about our `billing_address` child object.
shipping_address	`object`	An object that contains the shipping address details. Learn more about our `shipping_address` child object.

Billing Address [Child Object]

The table below lists the various parameters in the billing_address child object. This is part of the customer object.

Parameter	Type	Description
address1	`string`	Customer's billing address1. Max length: `100` characters. Example: `10 Downing Street Westminster London`
address2	`string`	Customer's billing address2. Max length: `100` characters. Example: `Oxford Street Westminster London`
address3	`string`	Customer's billing address3. Max length: `100` characters. Example: `Baker Street Westminster London`
pincode	`string`	Pincode of the billing address. Min length: `6` characters. Max length: `10` characters. Example: `51524036`
city	`string`	City of the billing address. Max length: `50` characters. Example: `Westminster`
state	`string`	State of the billing address. Max length: `50 characters.` `Example: Westminster`
country	`string`	Country of the billing address. Max length: `50` characters. Example: `London`
full_name	`string`	Full name of the customer. Max length: `50` characters. Example: `Doctor Strange`
address_type	`string`	Type of the billing address. Example: `Home` Accepted values: `HOME` `WORK` `OTHER`
address_category	`string`	Address category. Example: `Billing`

Shipping Address [Child Object]

The table below lists the various parameters in the shipping_address child object. This is part of the customer object.

Parameter	Type	Description
address1	`string`	Customer's shipping address1. Max length: `100` characters. Example: `10 Downing Street Westminster London`
address2	`string`	Customer's shipping address2. Max length: `100` characters. Example: `Oxford Street Westminster London`
address3	`string`	Customer's shipping address3. Max length: `100` characters. Example: `Baker Street Westminster London`
pincode	`string`	Pincode of the shipping address. Min length: `6` characters Max length: `10` characters. Example: `51524036`
city	`string`	City of the shipping address. Max length: `50` characters. Example: `Westminster`
state	`string`	State of the shipping address. Max length: `50` characters. Example: `Westminster`
country	`string`	Country of the shipping address. Max length: `50` characters. Example: `London`
full_name	`string`	Full name of the customer. Max length: `50` characters. Example: `Doctor Strange`
address_type	`string`	Type of the shipping address. Example: `Home` Accepted values: `HOME` `WORK` `OTHER`
address_category	`string`	Address category. Example: `Shipping`

Merchant Metadata [Child Object]

The table below lists the various parameters in the merchant_metadata child object. This object is part of the purchase_details child object.

Parameter	Type	Description
express_checkout_allowed_action	`string`	Access allowed during the express checkout. Accepted values: `checkoutCollectAddress`: We will collect the address of the customer during the checkout. `checkoutCollectMobile`: We will collect the mobile number of the customer during the checkout.

Cart Details [Child Object]

The table below lists the various parameters in the cart_details child object. This object is part of the Create Checkout Link request object.

Parameter	Type	Description
cart_items	`array of objects`	An object that contains the cart item details. Learn more about the `cart_itmes` child object.

Cart Items [Child Object]

The table below lists the various parameters in the cart_items child object. This object is part of the cart_details child object.

Parameter	Type	Description
item_id	`string`	Unique identifier of the item. Example: `cart_id_1`
item_name	`string`	Name of the item. Example: `T Shirt`
item_description	`string`	Description corresponding to the item. Example: `Shopping on Diwali Sale`
item_image_url	`string`	Image URL of the item. Example: `https://chriscross.in/cdn/shop/files/95_800x.jpg` Note: To ensure better resolution and optimal display on the checkout, please provide the image in `24x24` dimensions.
item_original_unit_price	`string`	Original price of the item. Example: `199`
item_discounted_unit_price	`string`	Discount price of the item. Example: `49`
item_quantity	`string`	Number of items purchased. Example: `2`
item_currency	`string`	Indicates the currency type for the purchase of the item. Example: `INR`

The table below lists the various parameters returned in the Generate Checkout Link response objects.

Parameter	Type	Description
token	`string`	Token generated by our system for Pine Labs Online Hosted Checkout. Example: `eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJzdWIiOiIxMjM0NTY3ODkwIiwibmFtZSI6IkpvaG4gRG9lIiwiaWF0IjoxNTE2MjM5MDIyfQ.SflKxwRJSMeKKF2QT4fwpMeJf36POk6yJV_adQssw5c`
order_id	`string`	Unique identifier of the order in the Pine Labs Online database. Example: `v1-5757575757-aa-hU1rUd`
redirect_url	`string`	The checkout link generated on our system. Example: `https://api.pluralonline.com/api/v3/checkout-bff/redirect/checkout?token=<>`
response_code	`integer`	Response code of the request. Example: `200`
response_message	`string`	Corresponding message to the response code. Example: `Order Creation Successful`

Refer to our Generate Checkout Link API documentation to learn more.

2. Installation

Follow the steps below to add the Express SDK to your Android application and initialize it using the token from the Order Creation API.

2.1. Add the SDK Dependency

Add the dependency to your app-level build.gradle:

dependencies {
    implementation 'com.github.pinelabs.express:1.0.0'
}

Alternatively, you can declare it through catalog styling using libs.versions.toml.

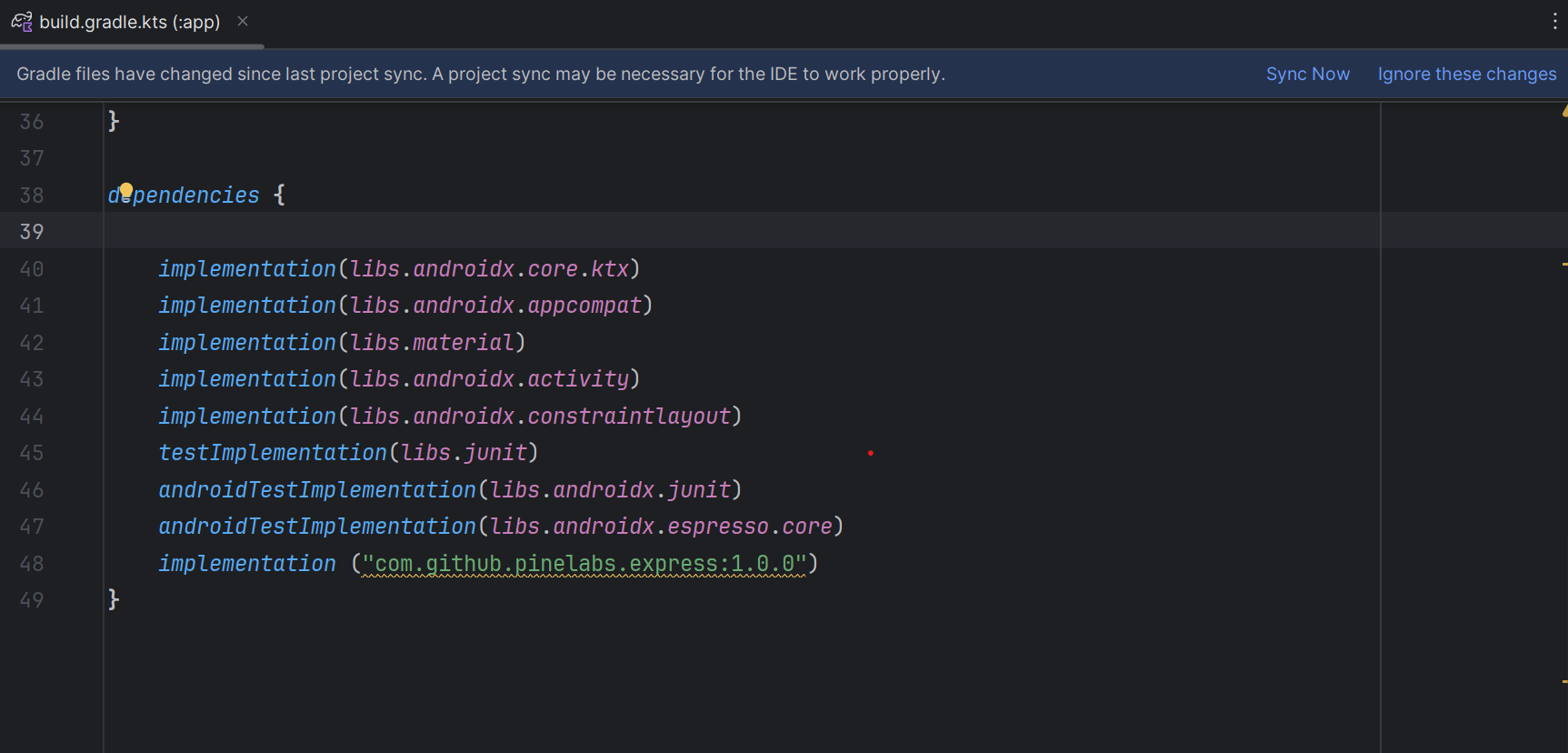

build-gradle-image — Figure: ADD SDK Dependency

2.2. Sync Your Project

Sync your project with Gradle to download the SDK and make it available in your build.

2.3. Initialize and Launch the SDK

Use the method below to start the SDK and pass the token received from the Create Order API.

ExpressSDKInitializer().initializeSDK(
    this@MainActivity,
    "${tokenEt.text}", // Replace with the actual token
    object : ExpressSDKCallback {

        override fun onError(
            errorCode: String?,
            errorMessage: String?,
            errorDescription: String?
        ) {
            Toast.makeText(
                this@MainActivity,
                "Error: $errorCode, $errorMessage, $errorDescription",
                Toast.LENGTH_LONG
            ).show()
            Log.e("ExpressSDK", "Error: $errorCode, $errorMessage, $errorDescription")
        }

        override fun onSuccess(
            responseCode: String?,
            responseMessage: String?,
            responseDescription: String?
        ) {
            Toast.makeText(
                this@MainActivity,
                "Success: $responseCode, $responseMessage, $responseDescription",
                Toast.LENGTH_LONG
            ).show()
            Log.i("ExpressSDK", "Success: $responseCode, $responseMessage, $responseDescription")
        }

        override fun onCancel(
            responseCode: String?,
            responseMessage: String?,
            responseDescription: String?
        ) {
            Toast.makeText(
                this@MainActivity,
                "Cancelled: $responseCode, $responseMessage, $responseDescription",
                Toast.LENGTH_LONG
            ).show()
            Log.d("ExpressSDK", "Cancelled: $responseCode, $responseMessage, $responseDescription")
        }
    },
    true // Set to false for PROD, true for UAT
)

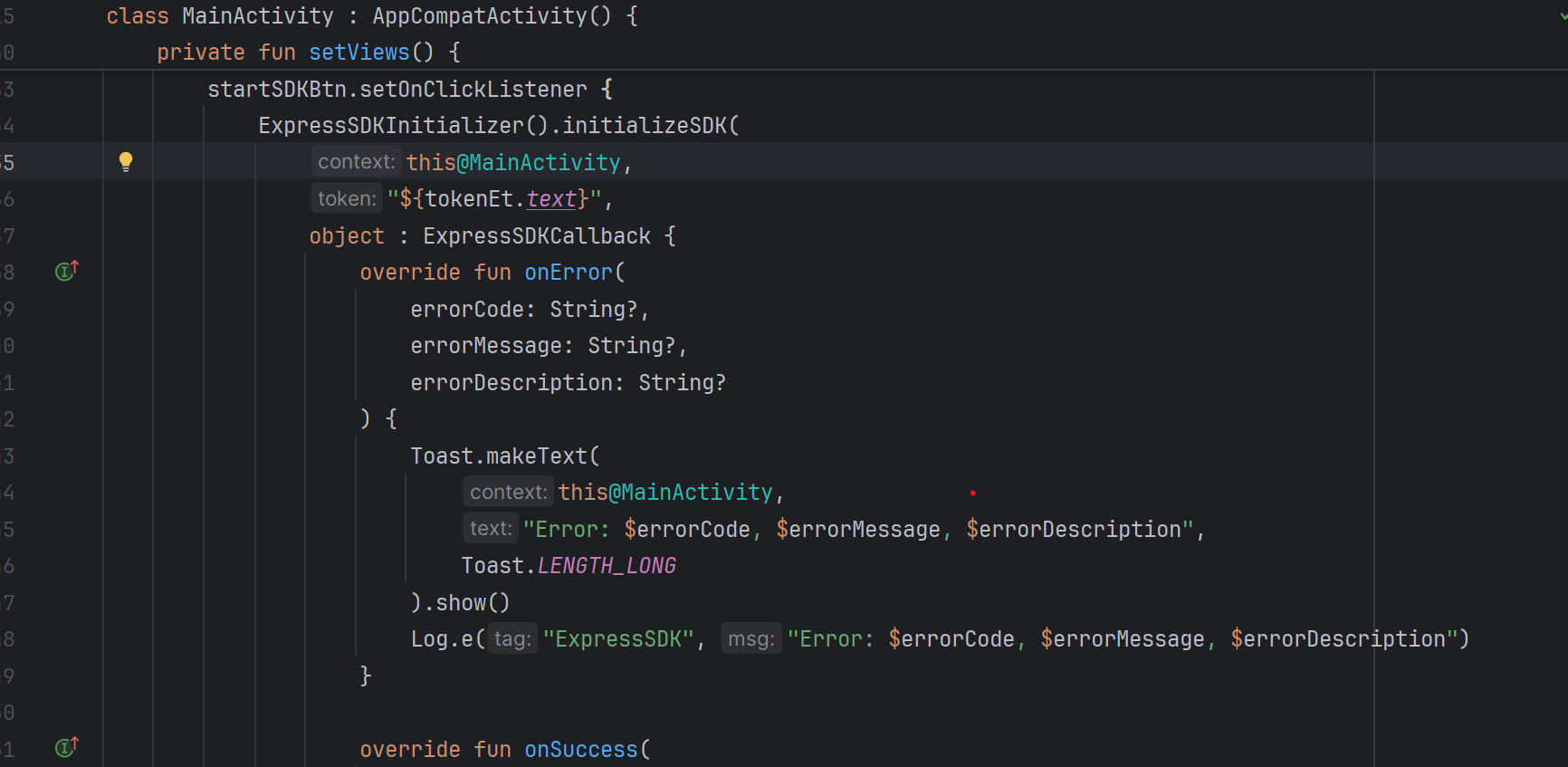

initialize-start-sdk-image — Figure: Initialize SDK

2.4. Configure the Environment

Configure the runInSandBox flag based on the environment:

UAT (Testing):
Set runInSandBox = true
Production (Live):
Set runInSandBox = false

📘
Note:

Always validate the full flow in UAT before switching to Production.

2.5. Handle SDK Callbacks

The SDK triggers three callbacks via ExpressSDKCallback. Implement all three to manage the payment flow effectively:

1. onError

Triggered when an error occurs, such as network or API failures.
Provides:

errorCode
errorMessage
errorDescription

2. onSuccess

Triggered when the transaction is successfully completed.

3. onCancel

Triggered when you customer cancels the transaction.

3. Manage Transactions

To get the status of the transaction made from your application, you can use our Fetch APIs to know the real time status.

3.1. Get Order by Order ID

Use this API to know the real time status of the transaction made on your application. Refer to our Get Order by Order ID API documentation to learn more.

3.2. Webhooks

You can configure the webhook events to know the status of your transactions. Refer to our Webhooks documentation to learn more.

Infinity Checkout Android Native SDK Integration

📘
Note:

1. [Prerequisite] Integrate APIs in Your Backend

1.1. Generate Auth Token

1.2. Generate Checkout Link

Order Amount [Child Object]

Purchase Details [Child Object]

Customer [Child Object]

Billing Address [Child Object]

Shipping Address [Child Object]

Merchant Metadata [Child Object]

Cart Details [Child Object]

Cart Items [Child Object]

2. Installation

2.1. Add the SDK Dependency

2.2. Sync Your Project

2.3. Initialize and Launch the SDK

2.4. Configure the Environment

📘
Note:

2.5. Handle SDK Callbacks

1. onError

2. onSuccess

3. onCancel

3. Manage Transactions

3.1. Get Order by Order ID

3.2. Webhooks

📘Note:

1. [Prerequisite] Integrate APIs in Your Backend

1.1. Generate Auth Token

1.2. Generate Checkout Link

Order Amount [Child Object]

Purchase Details [Child Object]

Customer [Child Object]

Billing Address [Child Object]

Shipping Address [Child Object]

Merchant Metadata [Child Object]

Cart Details [Child Object]

Cart Items [Child Object]

2. Installation

2.1. Add the SDK Dependency

2.2. Sync Your Project

2.3. Initialize and Launch the SDK

2.4. Configure the Environment

📘Note:

2.5. Handle SDK Callbacks

1. onError

2. onSuccess

3. onCancel

3. Manage Transactions

3.1. Get Order by Order ID

3.2. Webhooks

📘
Note:

📘
Note:
